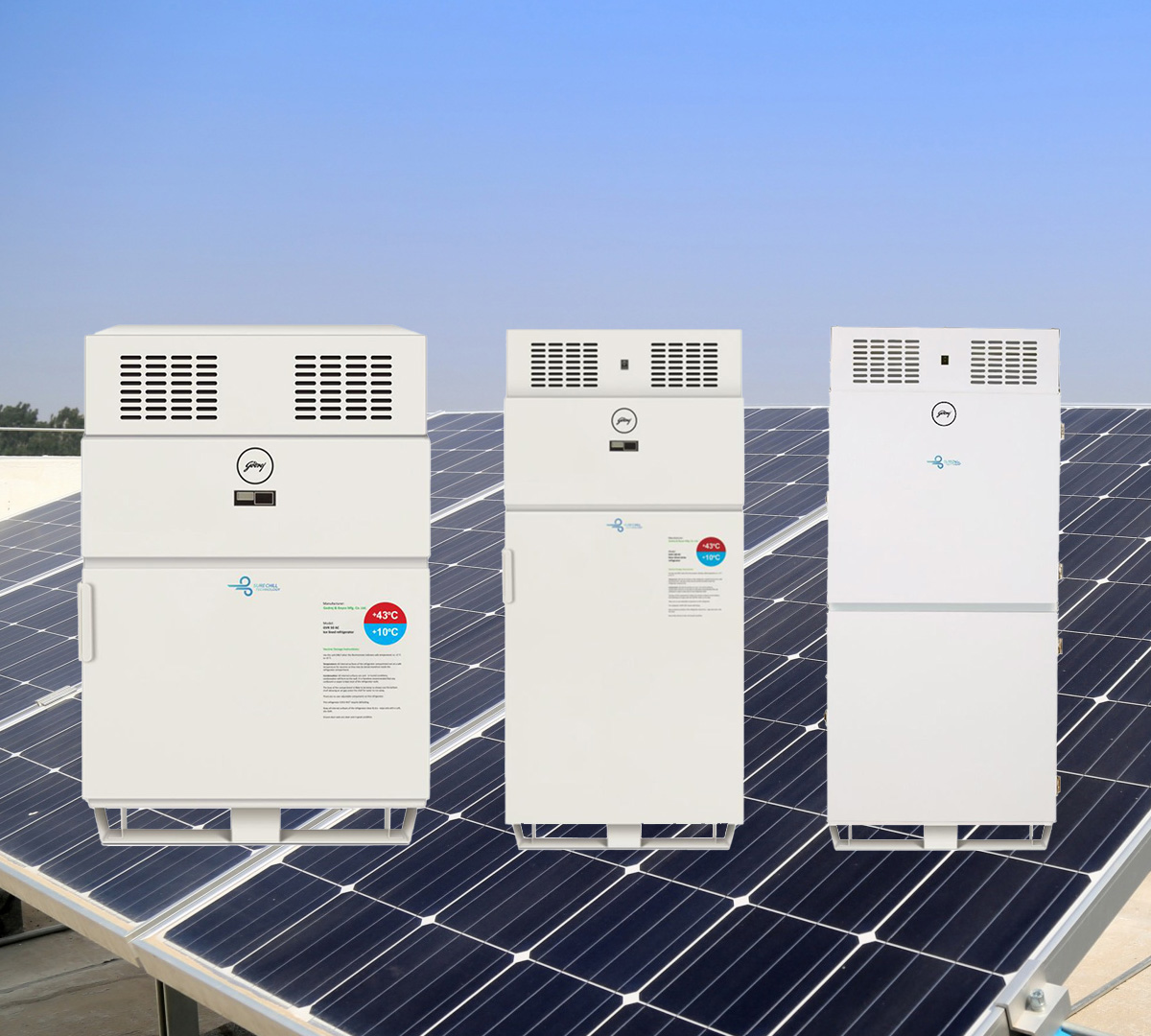

Solar Refrigerators

"Solar Direct Drive Ice Lined Refrigerators" for storage of blood and vaccines

As you are aware, all vaccines have to be stored under the cold chain between a temperature range 2 to 8 degrees. Even for storage of blood the requirement is similar.

Godrej has introduced an innovative product in the health care cold chain domain i.e. the upright 2nd Generation ILR using the Sure Chill technology. The company has developed a range of vaccine /blood storage with long, medium hold over running “On grid “ or Solar direct drive” .

The product caters to various immunization needs across the globe. As on date there are 12000+ PHCs/CHCs/District hospitals spread across the country using these refrigerators successfully.

The entire Ice lined refrigerator range is “WHO-PQS” pre qualified and are certified Grade “A” anti freeze as per recent UNICEF GAVI specifications. The upright design enables easy storage and access. The solar technology eliminates the use of batteries/Invertors and can store more than 20000 doses of COVID vaccines. This storage is possible for more than 7 days without any power. In one of the models a freezer is provided which caters to storage of ice packs used for transportation of vaccines.

Godrej Solar Direct Drive Vaccine refrigerators are revolutionizing the medical cold chain. We supply to MoHFW, UNICEF and NHM across the India ensuring vaccines and other lifesaving supplies are stored in perfect conditions.

Godrej- Surechill Medical Refrigerators

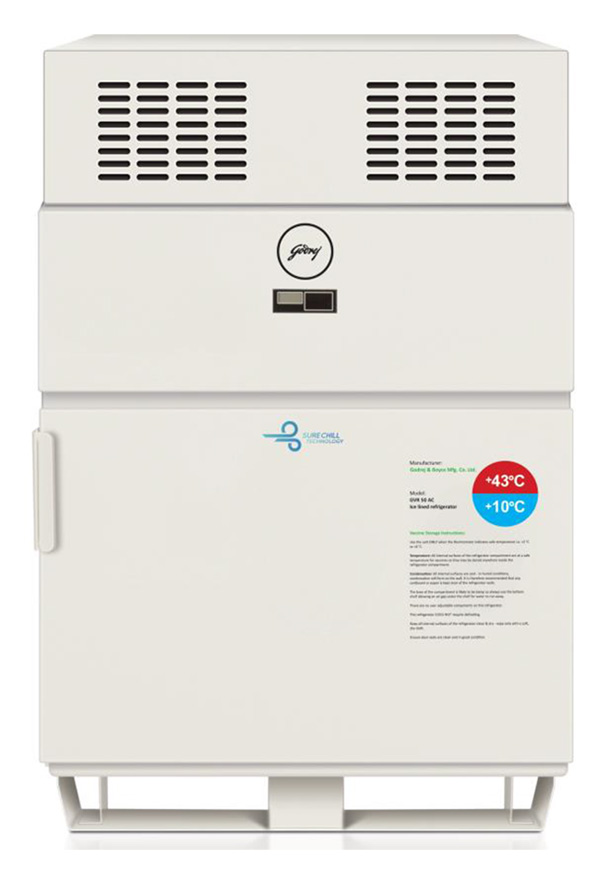

GVR 50DC - Solar Direct Drive Ice Lined Refrigerator

Key features of Godrej refrigerator

  • Hold over time of 5 days – The time during which all points in the cabinet remain between +2 oC to +8 oC for 5 days after the power supply has been cut.
  • There is no risk of freezing of vaccines – SureChill technology
  • Can operate in rough ambient temperature: +5 oC to +43 oC
  • Green : Environmental friendly refrigerator
  • Full Volume is available for vaccine storage due to uniform temperature throughout and no moisture issue

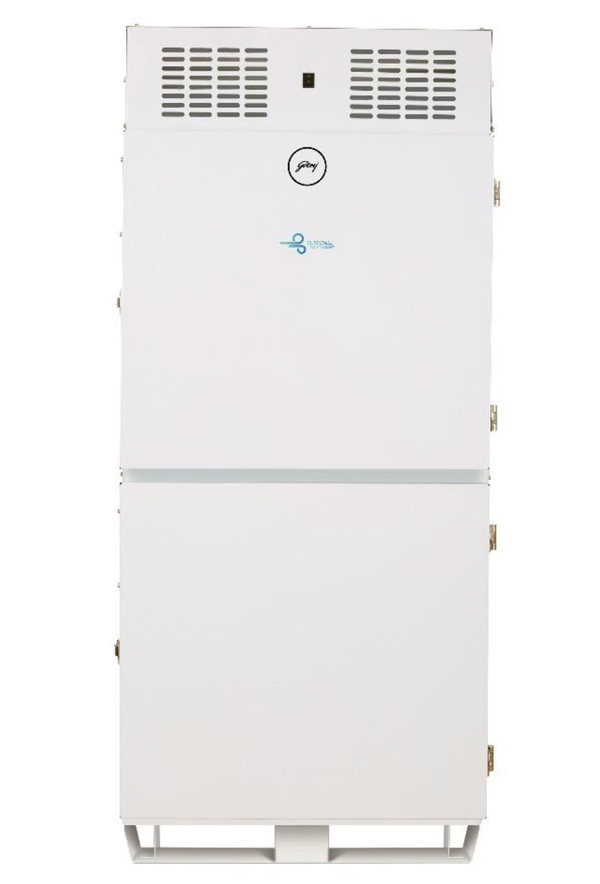

GVR 55 FF DC - Combo Fridge Freezer SDD

Key features of Godrej refrigerator

  • Hold over time of 12 days – The time during which all points in the cabinet remain between +2 oC to +8 oC for 12 days after the power supply has been cut off.
  • Guaranteed Anti-Freeze Vaccines – Sure Chill technology
  • Can operate in rough ambient temperature: +5 oC to +43oC
  • Green : Environmental friendly refrigerator
  • Digital temperature Recorder with Alarm System with 30 days temperature history

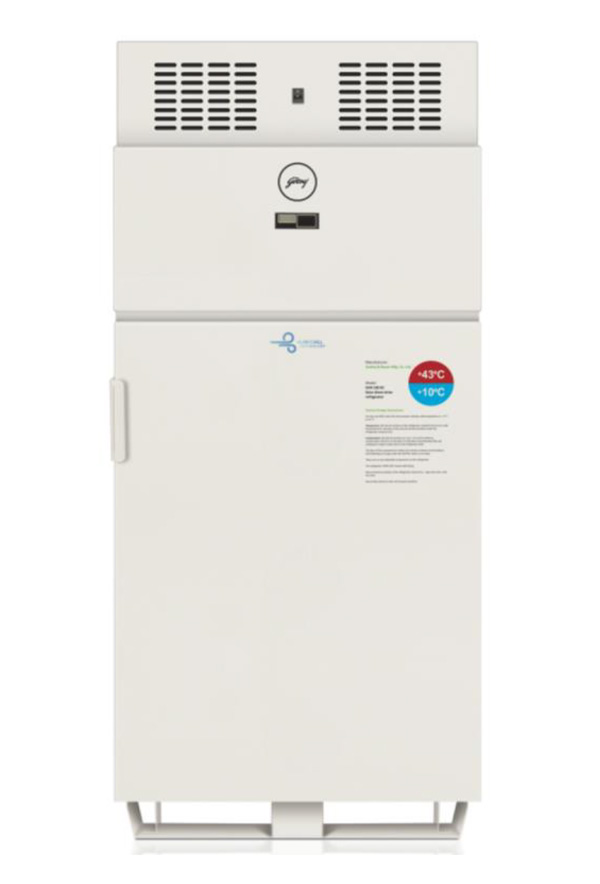

GVR 100DC - Solar Direct Drive Ice Lined Refrigerator

Key features of Godrej refrigerator

  • Hold over time of 10+ days – The time during which all points in the cabinet remain between +2 oC to +8 oC for 10 days after the power supply has been cut.
  • There is no risk of freezing of vaccines – SureChill technology
  • Can operate in rough ambient temperature: +5 oC to +43 oC
  • Green : Environmental friendly refrigerator
  • Full Volume is available for vaccine storage due to uniform temperature throughout and no moisture issue

Godrej- Surechill Medical Refrigerators

The Technology

2-8 C
Specialized
Cooling
Solution

What does it Provide?

  • Precise cooling between 2- 8 degree centigrade
  • Eliminates risk of freezing
  • Low stratification across storage chamber
  • Prolonged holdover in the event of power
    outages / Breakdown
  • Facilitates fast recoup of chamber temperature during frequent access / door openings
  • Low power consumption
  • Passive cooling –Low maintenance

Application Areas

  • Immunization – Vaccine storage
  • Blood Banks
  • Lab & Pharmaceutical Refrigerator
  • Pharma Distribution
  • Clinical Trial refrigerator

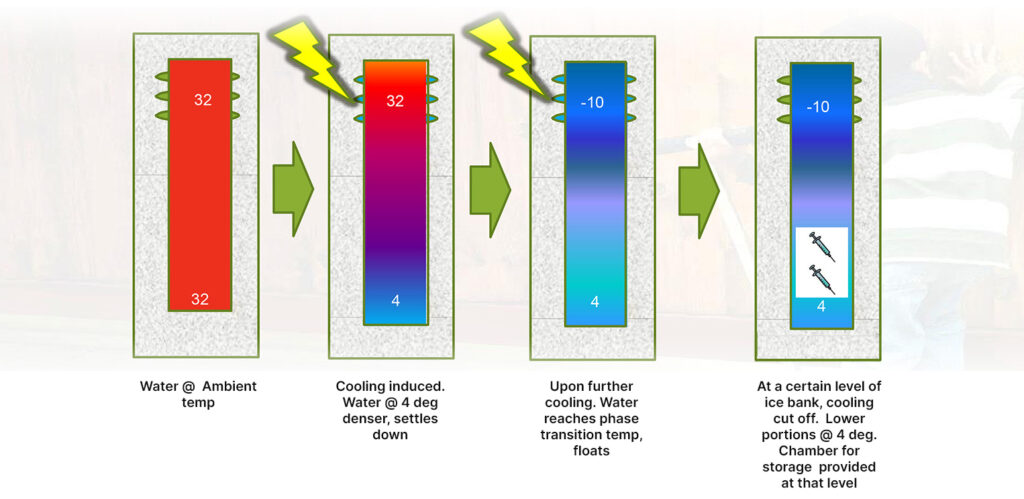

The Technology – Working Principle

Godrej Sure Chill Configuration Chart

S No Storage Capacity Model  Type
1 50 L GVR 50 DC Vaccine
2 100L GVR 100 DC Vaccine
3 58L GVR 55 FF DC Vaccine  cum freezer
4 50L GBR 50 Blood Bank  + Vaccine
5 100L GBR 100 L Blood Bank  + Vaccine
